Standard Flow Rates

Flow rate tables for Series 7000 (threaded) and Series 8000 (wafer) meters. All liquid rates are for water (SG = 1.0) at standard conditions. Gas rates are at 100 psig, 80°F. Use Option E for non-standard flow rates.

6:1

6:1 Turndown Ratio

RCM meters accurately measure from 100% down to ~17% of full scale. Example: a 600 GPM meter measures accurately down to 100 GPM. Below that minimum, accuracy degrades.

Available in both Series 7000 (threaded) and Series 8000 (wafer) configurations.

Pipe Size		Liquid		Gas (option I)		Steam
in	mm	GPM	l/m	SCFM	Nm³/h	#/h
¼	08	2	8	10	15	40
¼	08	3	15	20	30	60
¼	08	4	25	30	50	80
½	15	2	8	10	15	40
½	15	3	10	20	30	60
½	15	4	15	30	50	80
½	15	6	25	40	80	120
½	15	10	40	60	100	200
¾	20	6	25	60	100	120
¾	20	10	40	100	150	200
¾	20	15	60	150	200	300
¾	20	20	80	200	300	400
1	25	15	60	150	250	300
1	25	20	80	200	400	400
1	25	30	120	300	500	600
1	25	40	150	400	600	800
1½	40	30	120	300	500	600
1½	40	40	150	400	600	800
1½	40	60	240	600	1000	1000
1½	40	100	400	800	1200	2000
2	50	40	150	400	600	800
2	50	60	240	600	1000	1000
2	50	100	400	800	1200	2000
2	50	150	600	1000	1500	3000
2	50	200	800	1200	2000	4000
3	80	200	800	1000	1500	4000
3	80	300	1000	2000	3000	6000
3	80	400	1500	3000	5000	8000
3	80	500	2000	4000	6000	10000

Non-Standard Flow Rates (Option E): Other flow rates are available upon request with a minimum flow rate of 2 GPM or 10 SCFM and a maximum no greater than the maximum for the given size. Confirm availability and pricing with the factory.

Dials & Scales

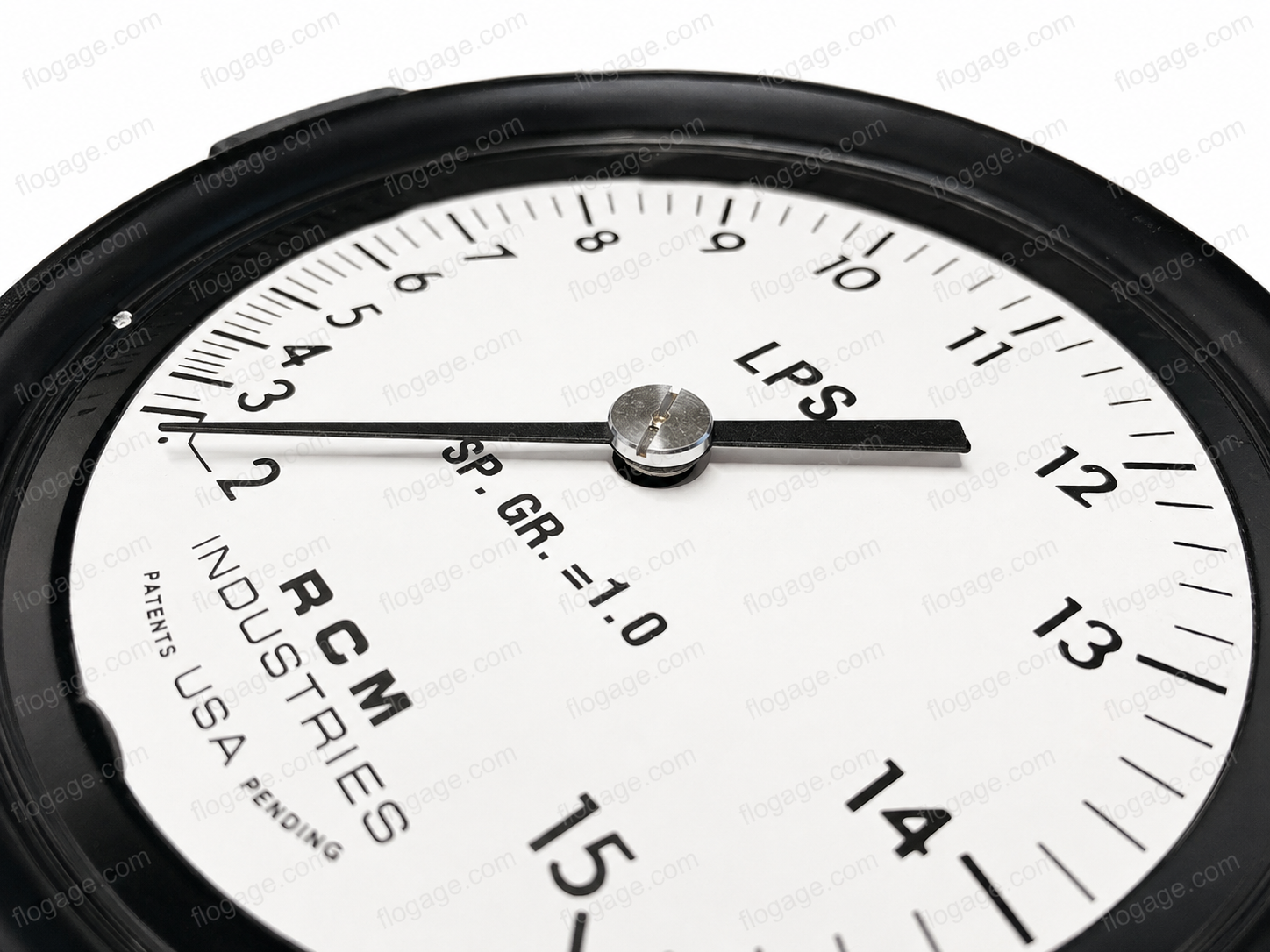

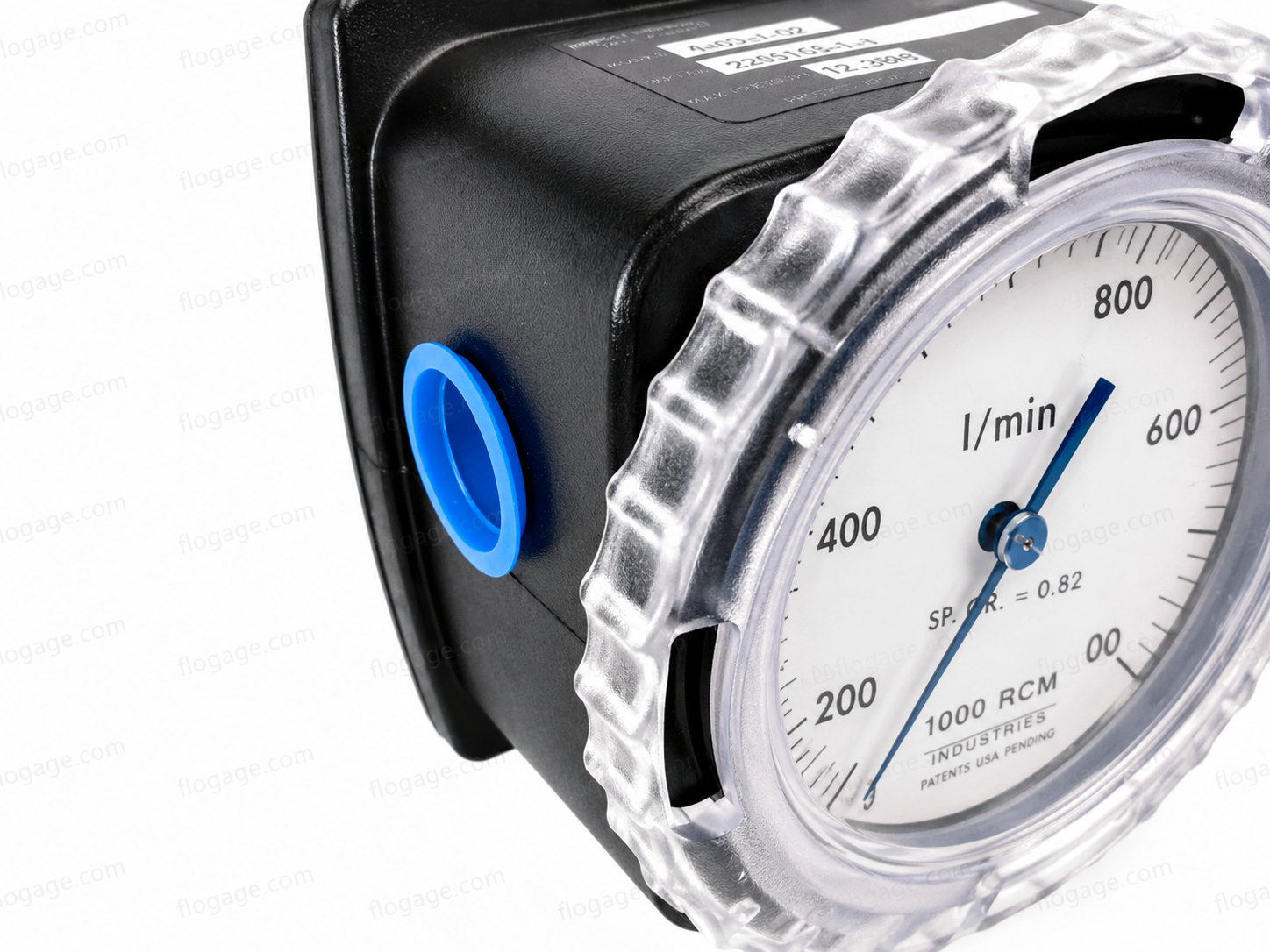

Each RCM Flo-Gage meter is supplied with a direct-reading dial scaled to the ordered full-scale flow rate. The table below shows available dial ranges, their minimum readable value, and the smallest graduation increment.

Left Column			Right Column
Range (Max)	Smallest (Min)	Increment	Range (Max)	Smallest (Min)	Increment
1	0.15	0.01	100	15	1
2	0.30	0.05	120	15	1
3	0.40	0.05	150	20	2
4	0.50	0.10	200	30	2
6	0.50	0.10	240	30	2
8	1.0	0.10	250	30	5
10	1.5	0.10	300	40	5
15	2.0	0.20	400	50	10
20	3.0	0.50	600	50	10
25	3.0	0.50	800	100	10
30	4.0	0.50	1000	150	10
40	5.0	1.0	1500	200	20
50	6.0	1.0	2000	300	20
60	5.0	1.0	3000	400	50
80	10.0	1.0	4000	500	100

Dial units match the ordered flow medium (GPM, SCFM, #/h, GPH, etc.). Custom scales are available — confirm with the factory when ordering non-standard flow rates.
