RCM Steam Flow Meters — Saturated Steam Service, Series 7000 & 8000

HomeRCM Steam Flow Meters

RCM Steam Flow Meters

Saturated Steam Service — Series 7000 & 8000

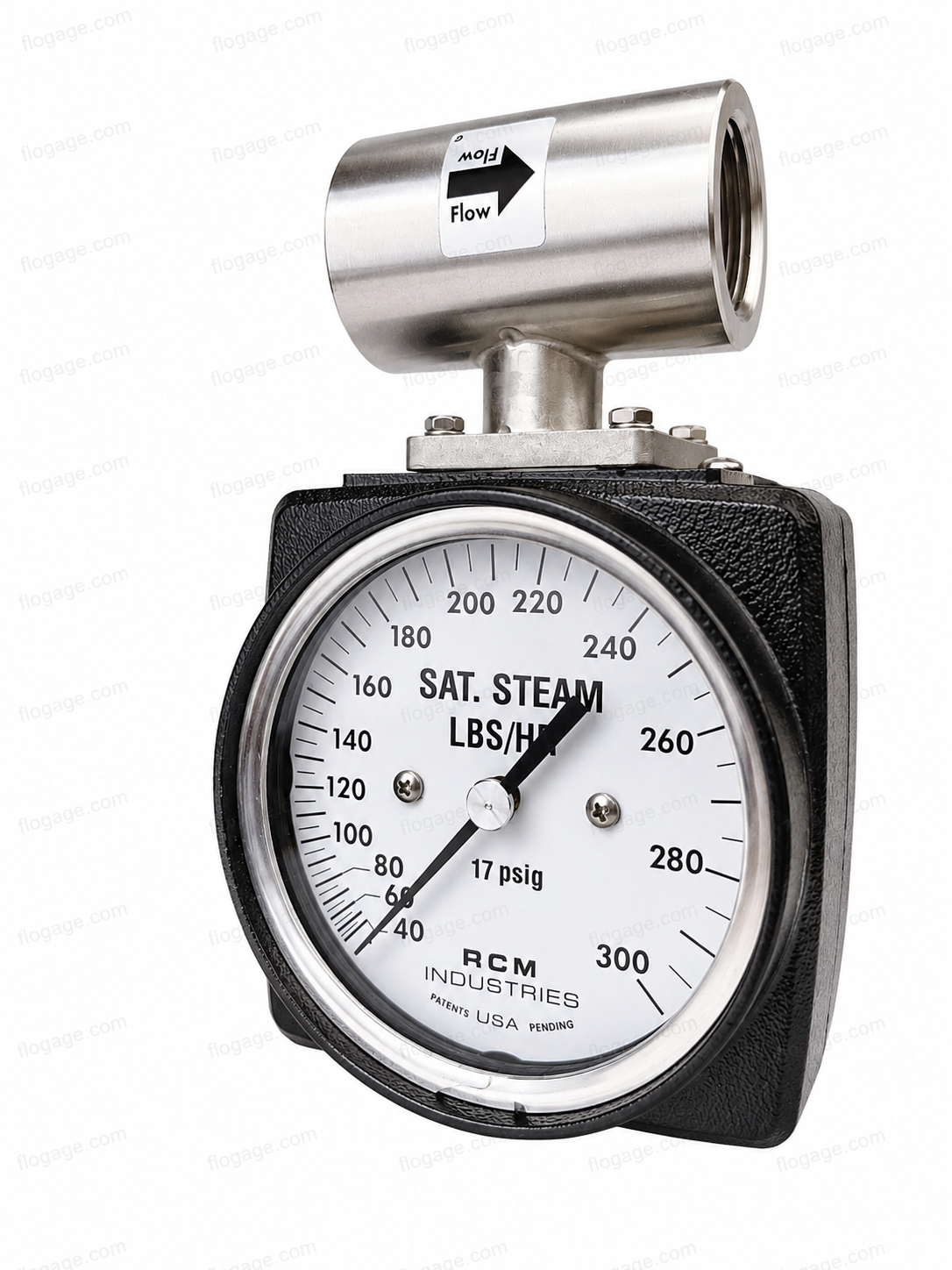

RCM Steam Flow Meter

RCM Steam flow meters measure saturated steam in an inexpensive, easy to apply flow meter. The steam service option includes EPR seals, SS bellows and an inverted housing.

Steam pressures are limited to 120 psig saturated unless remote mounted (Option R2 for bronze bodies or Option R3 for 316SS). All meters are available in either threaded (Series 7000) or flanged (Series 8000) connections.

The Flo-Gage™ operates on a classic differential pressure (ΔP) principle, similar to an orifice-plate meter but fully integrated for simplicity and reliability.

  • Meters available in Bronze, Monel or 316SS
  • Threaded Connections (Series 7000): 1/4″ to 3″ NPT or BSP
  • Wafer Style (Series 8000): 1/2″ to 8″

Standard Features

  • Sturdy in-line metal construction to withstand piping stresses without breaking.
  • Black on white dial — won't crack, glaze or become hard to read with age.
  • Expanded 3.5″ (90mm) 270° analog dial for reading at a glance.
  • Suitable for use with both opaque and clear fluids.
  • Measures 6:1 range with ±3% F.S. Accuracy.
  • Dial and case factory configured for quick installation — but easily field re-configured if needed.
  • EPR seals and 316SS bellows standard for steam service.
  • Inverted housing design for steam condensate drainage.

Typical Applications

Food & Beverage

Steam consumption monitoring in cooking, sterilization, and CIP processes

Pharmaceutical

Clean steam flow verification for sterilization and autoclave systems

Pulp & Paper

Process steam monitoring in drying and digester operations

Chemical Processing

Reactor heating and reboiler steam supply measurement

HVAC

Building steam distribution and heat exchanger monitoring

Power Generation

Auxiliary steam and turbine seal steam flow verification

Specifications

SpecificationStandardOptional
SeriesSeries 7000 (Threaded) / Series 8000 (Wafer)—
HousingUV Stabilized Polycarbonate (inverted)—
BodyBronzeMonel / 316SS
Bellows316SS—
SealsEPR—
CrystalPolycarbonate—
Gear MovementBronze—
Accuracy±3% F.S.—
Repeatability±1% F.S.—
Maximum Steam Pressure120 psig (standard)Over 120 psig requires R2 or R3 remote option
Minimum Pressure10 psig—
Maximum Temperature212°F (100°C)—
Minimum Temperature-30°F (-34°C)—

How It Works

The Flo-Gage is a self-contained mechanical differential pressure flow meter — no external transmitters, no power supply, no separate indicator required.

Step 1

Calibrated Flow Nozzle

Steam passes through an internally machined nozzle that creates a differential pressure (ΔP) proportional to the square of the flow rate. The nozzle geometry is fixed at manufacture for your specified operating conditions.

Step 2

Bellows Assembly

Upstream and downstream pressures are transmitted internally to a 316SS bellows. The bellows deflects in proportion to the ΔP — more flow means more deflection. No external pressure taps or impulse lines are needed.

Step 3

Mechanical Indication

Bellows movement is transferred through a mechanical linkage and gear mechanism directly to the indicator needle. The factory-engraved analog dial displays flow in engineering units (LB/HR) with no electronics in the flow path.

RCM Flo-Gage internal cutaway showing bellows, nozzle, and gear mechanism
Internal assembly — bellows, nozzle, and mechanical linkage
RCM Flo-Gage Series 7000 bronze steam flow meter
RCM Series 7000 bronze steam flow meter — factory-calibrated for your operating pressure

Steam Pressures Over 120 psig

Steam pressures over 120 psig require our R2 or R3 "remote" option. Option R2 is for bronze bodies; Option R3 is for 316SS bodies. Contact us for details on remote-mounted configurations.

Available Options for Steam Service

All standard Flo-Gage options are available on steam meters, subject to compatibility. Key options for steam applications:

Option R2 / R3

Remote Mount

Required >120 psig

Physically separates the indicator housing from the process connection via capillary tube. Required above 120 psig. R2 = bronze body; R3 = 316SS body.

View option details →
Option W / W2 / W3

Transmitter Options

Recommended for variable pressure
RCM Flo-Gage Transmitter Options

4–20 mA DC output from a solid-state strain gage transmitter. W2 retains the local mechanical dial; W3 omits it. Essential for variable-pressure applications with PLC/DCS compensation.

View option details →
Option RW3

Digital Display

Totalization capable

Local LCD with rate and totalizer readout plus 4–20 mA output. Ideal when steam consumption totalization is needed without a separate flow computer.

View option details →
Option 1S2 / 2S2

Limit Switches

Check compatibility

Reed switch alarm contacts for high/low flow setpoints. Not compatible with Options K, N, W, W2, W3, X, Y, or Z — confirm your full option combination before ordering.

View option details →

What to Include in Your RFQ

Have these details ready and your quote will come back faster and more accurate.

Normal operating steam pressureRequired

psig — required for scale calibration

Pipe size and scheduleRequired

e.g. 2″ Sch 40

Normal / minimum / maximum flow rateRequired

LB/HR or equivalent

Connection typeRequired

Threaded NPT/BSP (Series 7000) or wafer flanged (Series 8000)

Body material preference

Bronze (standard), Monel, or 316SS

Remote option needed?

Required if pressure exceeds 120 psig

Transmitter or digital display?

W, W2, W3, or RW3 — specify if 4–20 mA output is needed

Special certifications

e.g. material certs, NACE, cleaned for oxygen service

Steam Flow Meter FAQ

Common questions about applying, installing, and specifying RCM Flo-Gage meters on steam service.

Application & Selection

Installation & Piping

Options & Accessories

Accuracy & Maintenance

Why your operating steam pressure must be specified at time of order

The RCM Flo-Gage is a direct-reading mechanical differential pressure flow meter. As steam passes through the integral calibrated nozzle, a differential pressure (ΔP) is generated and transmitted internally to a bellows assembly. The bellows movement is converted through a mechanical linkage and gear mechanism directly into a needle position on the analog dial — no external power or instrumentation required. The dial scale is factory-engraved to display flow in engineering units (LB/HR or equivalent) for one specific set of conditions: your fluid, your operating pressure, and the resulting steam density at that pressure. Steam density is a strong function of pressure — saturated steam at 100 psig is roughly five times denser than at 15 psig. Because the nozzle ΔP-to-flow conversion is fixed in the mechanical calibration, the scale is only accurate at the pressure for which it was engraved. Operating at a different pressure changes the steam density, which shifts the relationship between ΔP and actual mass flow — the needle will be in the wrong position even though the bellows and linkage are working perfectly. There is no field adjustment. You must specify your normal operating steam pressure when requesting a quote. If line pressure varies significantly in service, ask about transmitter options (W, W2, W3), which output a 4–20 mA signal that can be corrected in a flow computer or PLC using real-time pressure compensation.

Have a steam application question not covered here?

Our engineering team is available Mon–Fri, 8:30am–4:30pm EST.
